P4.81 Indoor Full Color LED Screen

P4.81 Indoor Full Color LED Screen


Description
It is easy to operate while in use. The entire screen loading and unloading can be fixed & connected by fast bolts. Moreover, by using die-casting aluminum module, the box tolerance can be controlled within 0.1mm. For other applications such as the color and height of central processor, recorded data can synchronize any replacement modules to keep the same color and brightness.

Description:
Better Preformance: It utilizes full black color LED chips to reach perfect visual effects;
Easy Assemby: It is of light weight for hanging fixed installation;
Intelligence: Automaticly detect the working state of power supply;
Stable Quality: With die-casting aluminum structure, the screen is stable enough for frequent shipment during rental cases use.
Our Advantages:
• Intelligent module
• Stacking & hanging installation
• Unique design of stainless lock
• High definition display
• Longer life span
• Cabinet design according to customer requirements

If you've got any specific requirement, just tell us the size, shape, color of the LED and your favorite installation method, etc. We can help address your project challenges with our expertise. Moreover, the cooperation details can be negotiated by both sides.
Specifications
Pixel Pitch 4.81
Pixel Density (pixel/m²) 43264
LED Encapsulation SMD2727
Scanning Mode 43113
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Brightness (cd/m²) 1200
Gray Scale (bit) 13/16
Refresh Rate (Hz) 1920/3840
Max Power Consumption ( W/m²) 580
Average Power Consumption ( W/m²) 166
Module Size (mm) 250*250

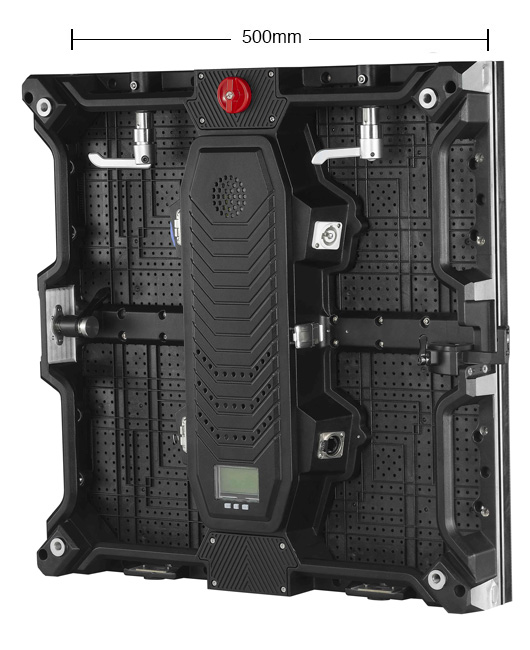

Cabinet Dimension ( mm) 500*500*88
Cabinet Weight 7.8
Cabinet Resolution ( dot x dot) 104*104
Cabinet Material Die-casting Aluminium
Input Voltage (AC) 100V-240V
Maintenance Method Front/Rear
IP Rating (front/rear) IP31
Environment Indoor
Shirley Vasquez
CAT # ILD-011
Name P4.81 Indoor Full Color LED Screen
• Product Type: P4.81
• Cabinet Material: Die-casting Aluminium
• Brightness Adjustment: Manual/Auto/Programmable
• Features: Light Weight, Dot-by-dot Calibration
• Applications: Stage Performance, Indoor Advertising, Sports Halls…
