P2.84 Indoor Full Color LED Screen
Description
It is easy to operate while in use. The entire screen loading and unloading can be fixed & connected by fast bolts. Moreover, by using die-casting aluminum module, the box tolerance can be controlled within 0.1mm. For other applications such as the color and height of central processor, recorded data can synchronize any replacement modules to keep the same color and brightness.Description:
Better Preformance: It utilizes full black color LED chips to reach perfect visual effects;
Easy Assemby: It is of light weight for hanging fixed installation;
Intelligence: Automaticly detect the working state of power supply;
Stable Quality: With die-casting aluminum structure, the screen is stable enough for frequent shipment during rental cases use.
Our Advantages:
• Intelligent module
• Stacking & hanging installation
• Unique design of stainless lock
• High definition display
• Longer life span
• Cabinet design according to customer requirements
If you've got any specific requirement, just tell us the size, shape, color of the LED and your favorite installation method, etc. We can help address your project challenges with our expertise. Moreover, the cooperation details can be negotiated by both sides.
Specifications |
|
---|---|
Pixel Pitch | 2.84 |
Pixel Density (pixel/m²) | 123904 |
LED Encapsulation | SMD2020 |
Scanning Mode | 43122 |
Horizontal Viewing Angle | 160° |
Vertical Viewing Angle | 160° |
Brightness (cd/m²) | 800 |
Gray Scale (bit) | 13/16 |
Refresh Rate (Hz) | 1920/3840 |
Max Power Consumption ( W/m²) | 465 |
Average Power Consumption ( W/m²) | 133 |
Module Size (mm) | 250*250 |

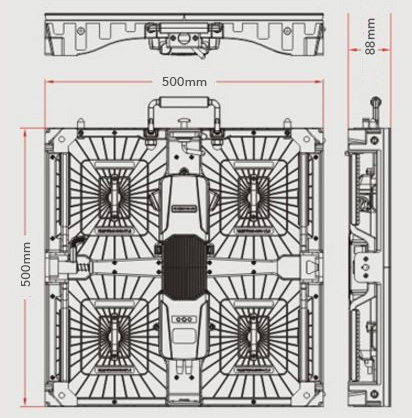

Cabinet Dimension ( mm) | 500*500*88 |
Cabinet Weight | 7.8 |
Cabinet Resolution ( dot x dot) | 176*176 |
Cabinet Material | Die-casting Aluminium |
Input Voltage (AC) | 100V-240V |
Maintenance Method | Front/Rear |
IP Rating (front/rear) | IP31 |
Environment | Indoor |
Shirley Vasquez
-
info@ste-mart.com
Address:
CAT # | ILD-010 |
---|---|
Name | P2.84 Indoor Full Color LED Screen |
• Cabinet Material: Die-casting Aluminium
• Brightness Adjustment: Manual/Auto/Programmable
• Features: Light Weight, Dot-by-dot Calibration
• Applications: Stage Performance, Indoor Advertising, Sports Halls…
