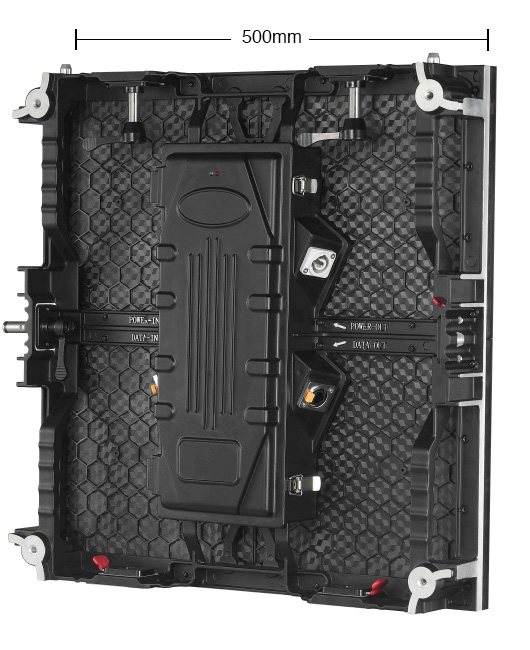

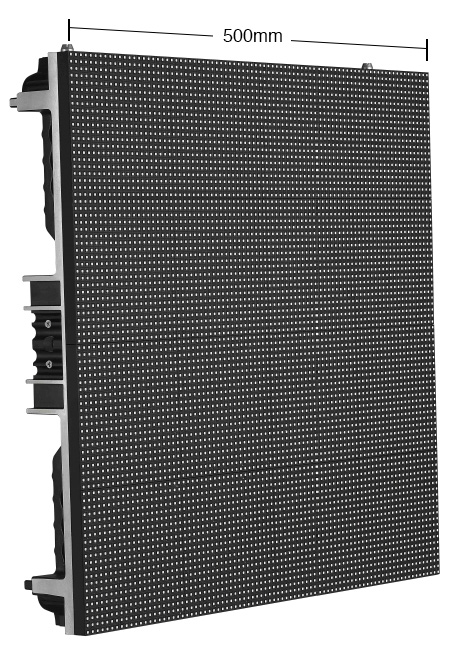

P5.95 Outdoor Full Color LED Screen
Description
Our Advantages:• Present you perfect HD image.
• Noiseless design, with special adjustable locks.
• QC is guaranteed.
• Fast installation and high precision.
• Make considerate solutions based on your situation and requests.
If you've got any specific requirement, just tell us the size, shape, color of the LED and your favorite installation method, etc. We can help address your project challenges with our expertise. Moreover, the cooperation details can be negotiated by both sides.
Specifications |
|
|---|---|
| Pixel Pitch | 5.95mm (0.23") |
| Pixel Density | 28224 pixel/m² (18 pixel/in²) |
| Pixel Configuration | 1R1G1B (R: 620-630nm, G: 515-525nm, B: 465-475nm) |

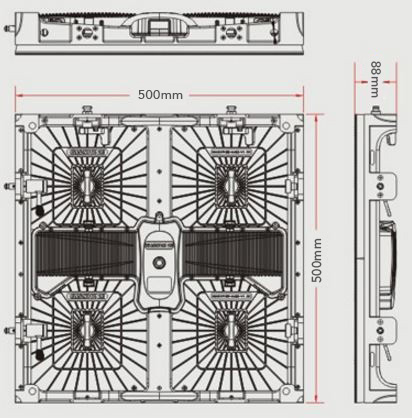

| Panel Dimension (WxHxD) | 500mmx500mmx88mm (19.7"x19.7"x3.5") |
| Panel Resolution | 84 x 84 pixel, 56 x 112 pixel, 70 x 140 pixel, 72 x 144 pixel, 84 x 168 pixel |
| Brightness | >=5000nits |
| Panel Weight | 9kg (19.8lb) |
| Color Temperature | 6500-9500k |
| Grey Scale | 14-16bit |
| Refresh Rate | >=1000Hz |
| Cabinet Material | Die Casting Aluminum |
| View Angle | H:150°, V:140° |
| Best Viewing Distance | >5m |
| Operating Temperatur | -20°C ~ +50°C |
| Operating Humidity | 10% ~ 90% |
| Max Power Consumption | <=1200W/m² |
| Average Power Consumption | <=800W/m² |
| Max. Stacking | 12pcs |
| Max Hanging | 12pcs |
| Lifespan | 100,000 hrs |
| IP Rating | IP65 |
| Voltage | AC110V ~ 240V 50/60Hz |
| Transmission Distance | UTP: 100m (Single-mode fiber: 10km) |
| Brightness Adjustment | Manual/Auto/Programmable |
| Controller Card (Sending Card) | Yes, included, wired or wireless (USB, WiFi, TCP/IP) |
| Supporting OS | Windows 7, 10 32/64bit |
Shirley Vasquez
-
info@ste-mart.com
Address:
| CAT # | OLD-004 |
|---|---|
| Name | P5.95 Outdoor Full Color LED Screen |
• Cabinet Material: Die-casting Aluminium
• Brightness Adjustment: Manual/Auto/Programmable
• Features: Light Weight
• Applications: Events Production
